SPL2 - Alignment Unit

Proper construction with associated joint alignment is critical to a properly functioning orthosis. This alignment kit facilitates joint alignment during the production of an orthosis with Swing Phase Lock 2 (SPL 2) joint. This alignment kit can also be used in conjunction with a Swing Phase Control (SPC) joint, if applicable.

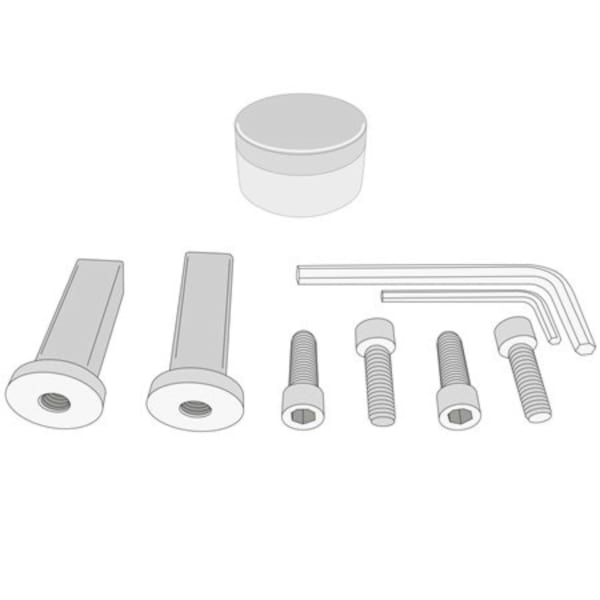

Package contents:

• 2 x threaded bar profile
• 4 x cylindrical screw with hexagon socket
• 1 x Function unit dummy
• 1 x Allen key (3mm)
• 1 x Allen key (6 mm)
• Instruction for use

Note: To complete this set, the Basis Alignment T-bar should be ordered separately.
